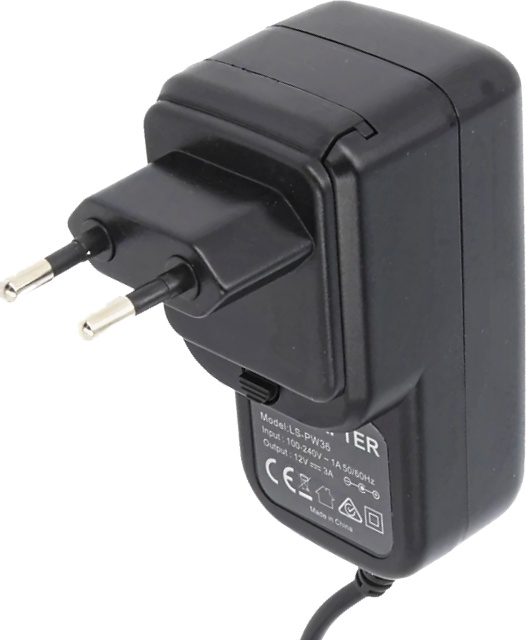

12V/3A Power supply to the socket
Power supply suitable for powering level meters of the H520 or H530 series, H531 and small telemetry stations (H1, H2) located in the interior.
The power supply cannot be used to charge a 12V battery.
Technical parameters
Single-phase power supply to the socket
Output voltage: 12VDC
Output current: 3A
Output power: 36W
Rated AC input voltage: 100..240VAC
Efficiency at 230 VAC: 82%
Integrated protections: overload, short circuit, overvoltage
Working temperature: -35 ° C to +40 ° C
Weight: 0.3 kg
Dimensions: 80 x 44 x 44 mm
Cable length: 1,2 m
Insulation class II, double insulation, ROHS
